LMA® Airways

The latest innovations in LMA® Airway design

New products, expanded applications, and innovative design features to help clinicians reduce the risk of airway-related complications – it’s what you have come to expect from a leader in airway management who has led the way right from the start.

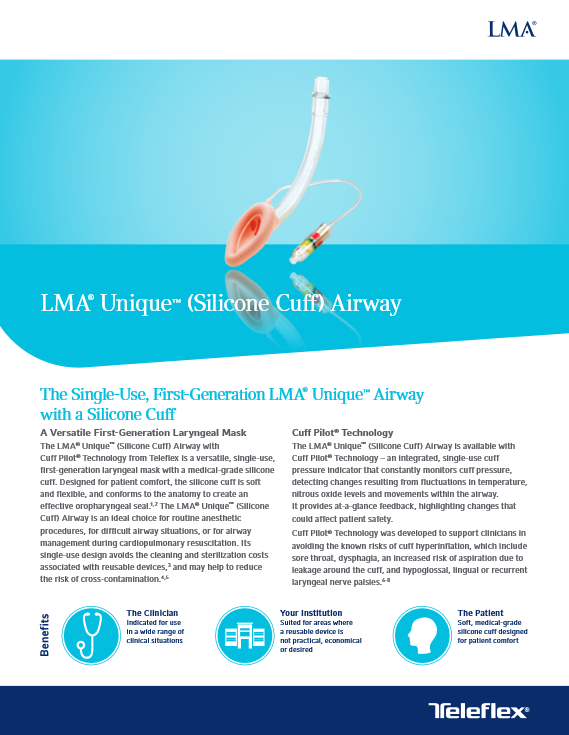

LMA® Unique™ (Silicone Cuff) Airway

LMA Unique (Silicone Cuff) Airway

A first-generation airway with the added benefits of integrated cuff pressure monitoring

The LMA® Unique™ (Silicone Cuff) Airway with Cuff Pilot™ Technology from Teleflex combines all the features of the LMA® Unique™ Airway with the added benefits of integrated cuff pressure monitoring and a silicone cuff.1,2,7 Potential benefits of silicone over polyvinyl chloride (PVC) include:

  • Greater elasticity to conform to the anatomy1-3
  • Higher oropharyngeal seal pressures2-4
  • A lower risk of post-operative sore throat5,6
  • Not made with phthalates

Item Number With Cuff
Pilot™ Technology*		 Item Number with Pilot
Balloon		 Plus Pack Item Number** Mask Size Patient
Size (kg)
105200-000010 105300-000010 1F8010 1 Up to 5
105200-000015 105300-000015 1F8015 1.5 5–10
105200-000020 105300-000020 1F8020 2 10–20
105200-000025 105300-000025 1F8025 2.5 20–30
105200-000030 105300-000030 1F8030 3 30–50
105200-000040 105300-000040 1F8040 4 50–70
105200-000050 105300-000050 1F8050 5 70–100
105200-000060 105300-000060 1F8060 6 over 100

*It is recommended that the cuff be inflated to a maximum of 60 cm H20 intracuff pressure.
**Plus Pack includes syringe, lubricant, and LMA® Unique™ (Silicone Cuff) Airway with Cuff Pilot™ Technology

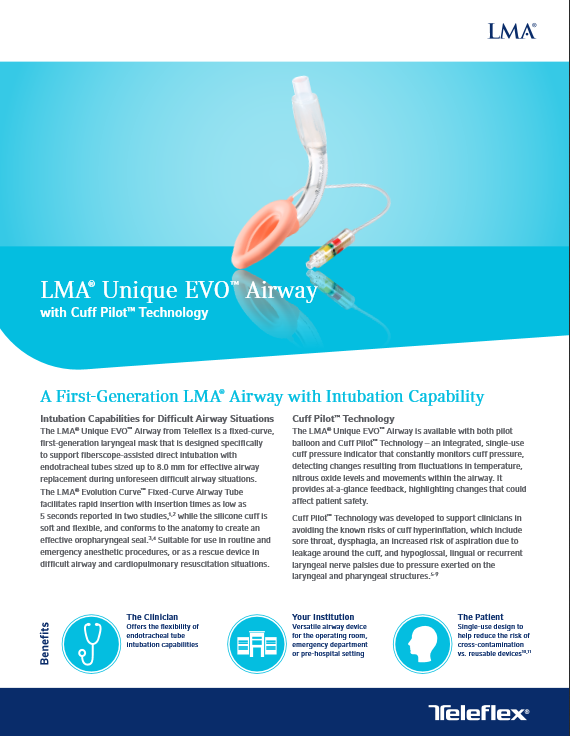

LMA® Unique EVO™ Airway

LMA Unique EVO Airway

A first-generation airway with Intubation Capability

The LMA® Unique EVO™ Airway from Teleflex is a fixed-curve, first-generation laryngeal mask that is designed specifically to support fiberscope-assisted direct intubation with endotracheal tubes sized up to 8.0 mm for effective airway replacement during unforeseen difficult airway situations. The LMA® Unique EVO™ Airway is available in a full range of sizes with both pilot balloon and Cuff Pilot™ Technology.

Item Number
Cuff pilot
Technology*		 Item Number
Pilot Balloon		 Mask Size PATIENT WEIGHT (KG) MAXIMUM ETT ID (MM)
1D2010 1D5010 1 5 4.5
1D2015 1D5015 1.5 5-10 4.5
1D2020 1D5020 2 10-20 6.5
1D2025 1D5025 2.5 20-30 6.5
1D2030 1D5030 3 30-50 7
1D2040 1D5040 4 50-70 7.5
1D2050 1D5050 5 70-100 8

*Cuff Pilot™ Technology recommendation for cuff pressure: green zone pressure range = 40 - 60 cm H20 for all sizes.

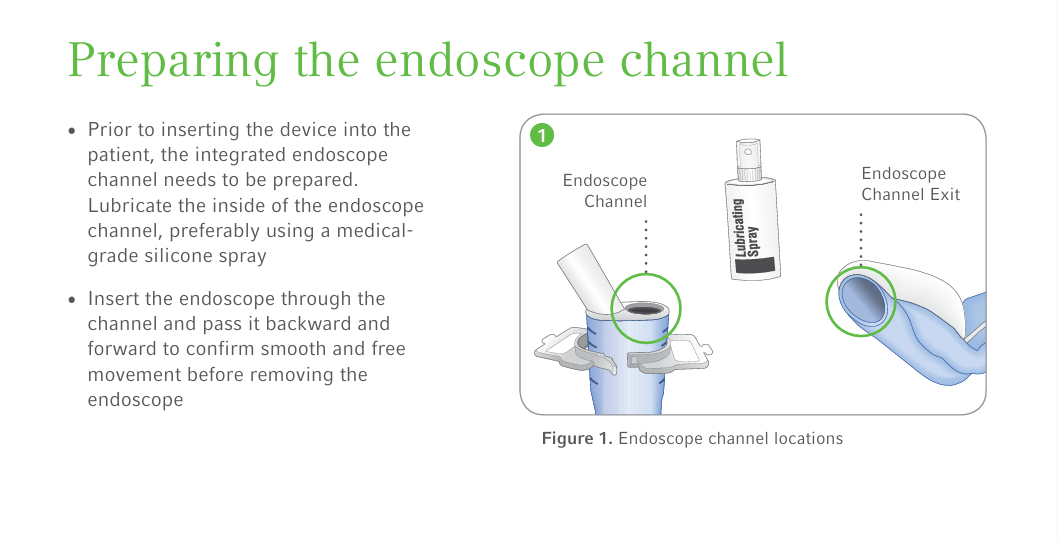

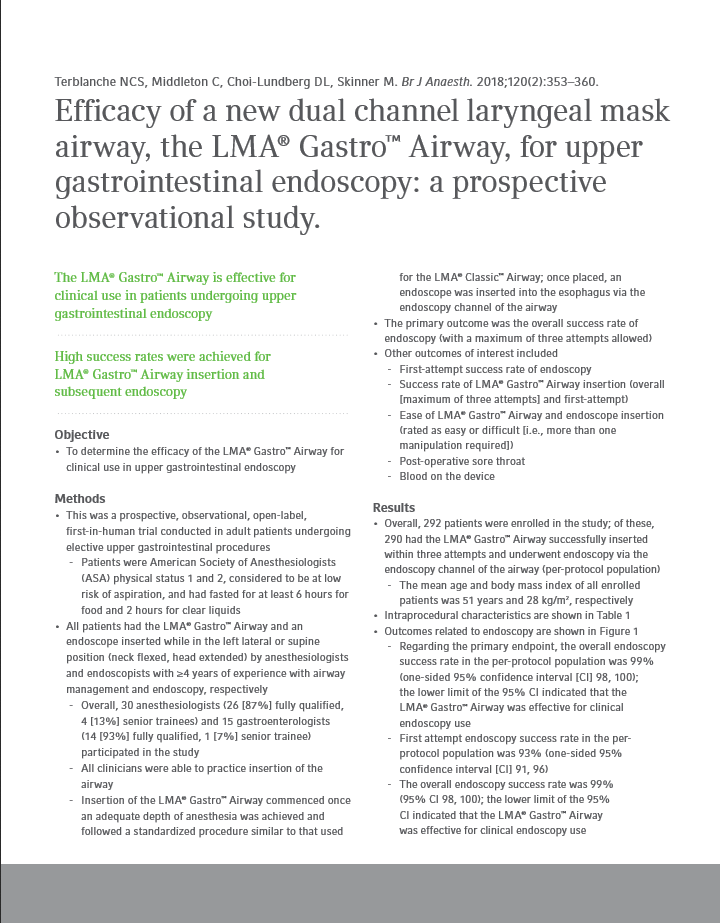

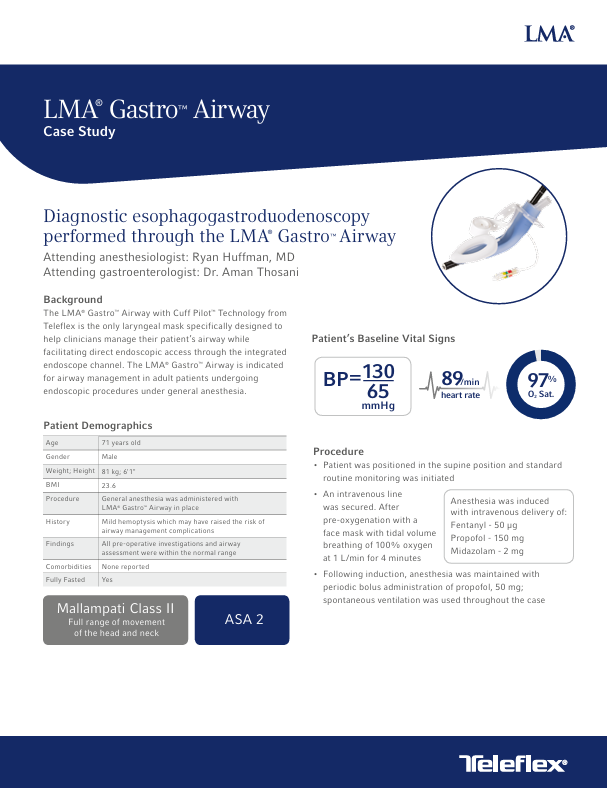

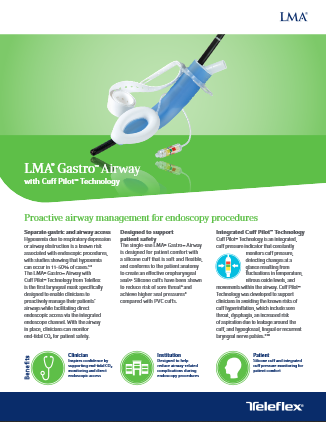

LMA® Gastro™ Airway

LMA Gastro Airway

Proactive airway management for endoscopy procedures

The LMA® Gastro™ Airway with Cuff Pilot™ Technology from Teleflex is the first laryngeal mask specifically designed to enable clinicians to proactively manage their patients’ airways while facilitating direct endoscopic access via the integrated endoscope channel. With the airway in place, clinicians can monitor end-tidal CO2 for patient safety.

Item
Number		 MASK SIZE PATIENT WEIGHT (KG) MAXIMUM INTRACUFF
PRESSURE (CM H20*) 		MAXIMUM ENDOSCOPE
SIZE (OD) (MM)
1E5030 3 30 – 50 60 14
1E5040 4 50 – 70 60 14
1E5050 5 70 – 100 60 14

*Cuff Pilot™ Technology recommendation for cuff pressure: green zone pressure range = 40 - 60 cm H20 for all sizes.

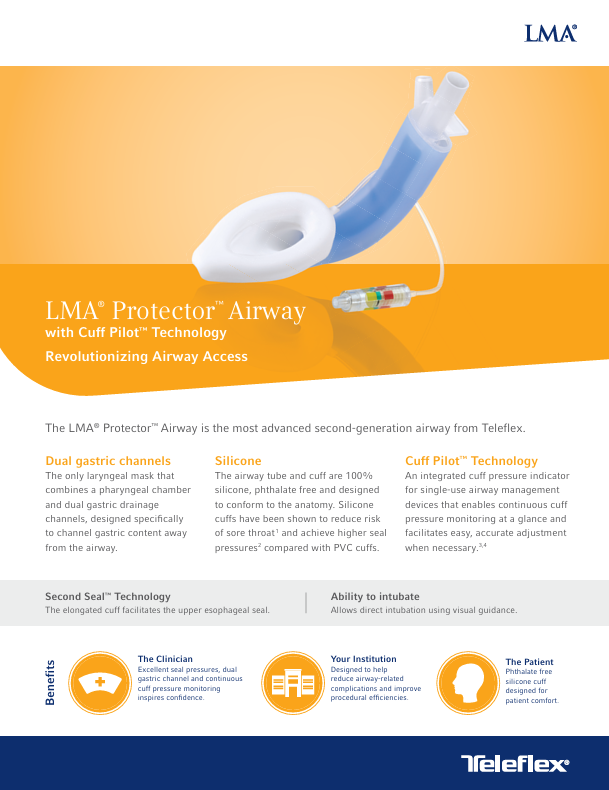

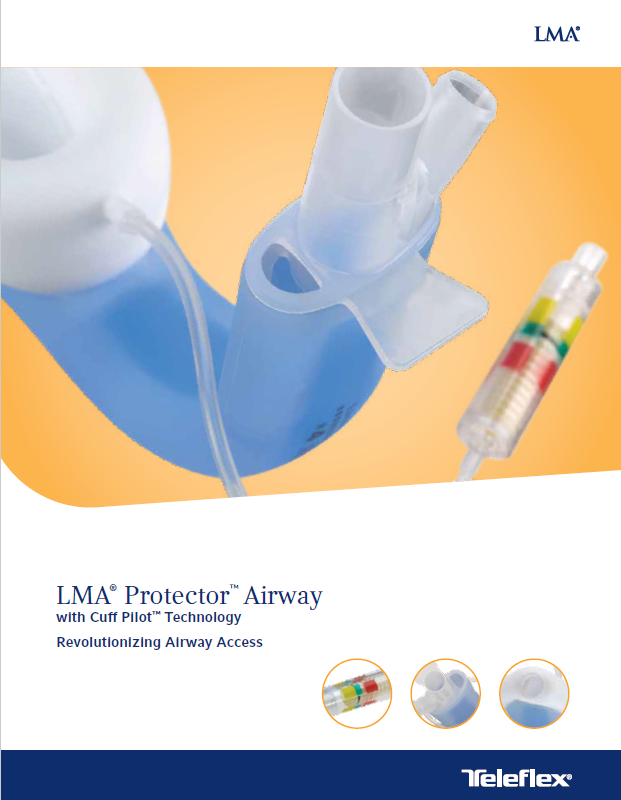

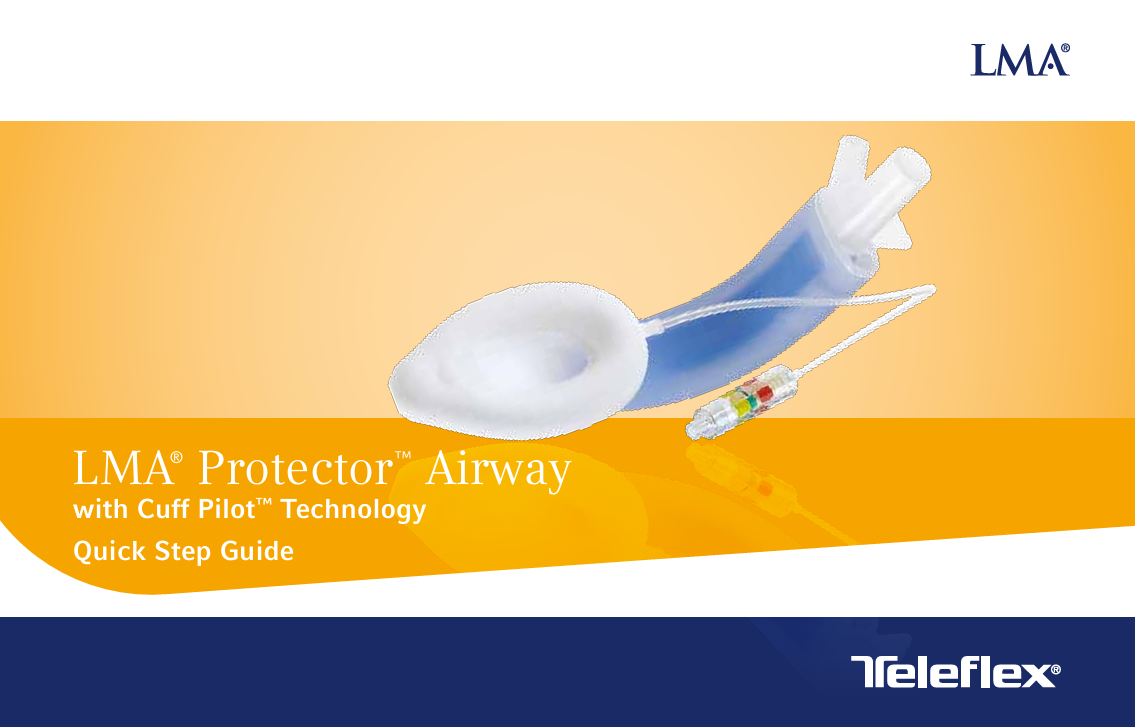

LMA® Protector™ Airway

LMA Protector Airway

The most advanced second-generation airway from Teleflex.

The LMA® Protector™ Airway with Cuff Pilot™ Technology from Teleflex is the only laryngeal mask that combines a pharyngeal chamber and dual gastric drainage channels, designed specifically to channel gastric content away from the airway. The LMA® Protector™ Airway features Cuff Pilot™ Technology and a 100% silicone airway tube and cuff.

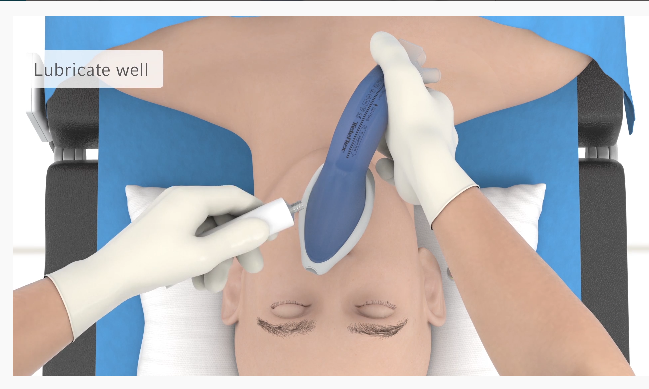

Key Features Video

Item
Number		 MASK SIZE PATIENT WEIGHT (KG) MAXIMUM INTRACUFF
PRESSURE (CM H20*) 		MAXIMUM ENDOSCOPE
ETT ID (MM) 		LARGEST SIZE
OG TUBE (FR)
192030 3 30 – 50 60 6.5 16
192040 4 50 – 70 60 7.5 18
192050 5 70 – 100 60 7.5 18

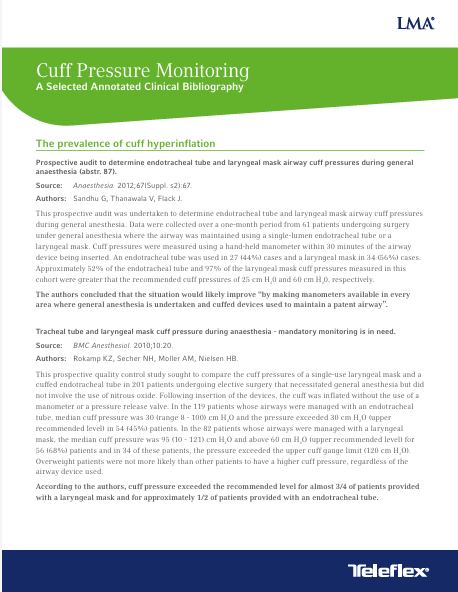

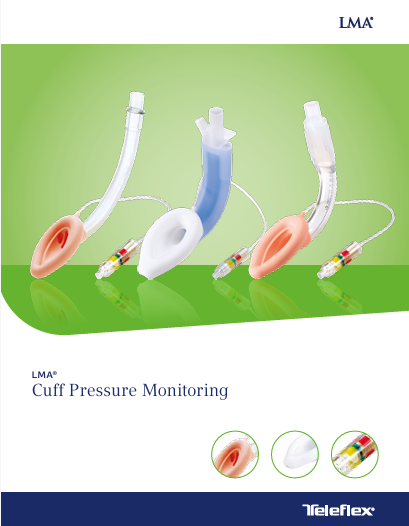

Cuff Pilot™ Technology

Cuff Pilot Technology

An integrated cuff pressure indicator

Cuff Pilot™ Technology was developed to support clinicians in avoiding the known risks of cuff hyperinflation, which include sore throat, dysphagia, an increased risk of aspiration due to leakage around the cuff, and hypoglossal, lingual, or recurrent laryngeal nerve palsies.8-11 Cuff Pilot™ Technology is an integrated, single-use cuff pressure indicator that constantly monitors cuff pressure, detecting changes resulting from fluctuations in temperature, nitrous oxide levels, and movements within the airway.

Simple to use:
a simple glance is all that‘s needed to confirm optimal intracuff pressure right from the start – and throughout the procedure

Supports a reliable seal:
designed to help clinicians maintain the optimal intracuff pressure of 40-60 cm H20 required to achieve a reliable oropharyngeal seal

Strategy to reduce the risk of airway morbidity:
throughout a procedure clinicians can monitor intracuff pressure to ensure it does not exceed 60 cm H20 – a strategy shown to reduce airway morbidity by up to 70%10-12

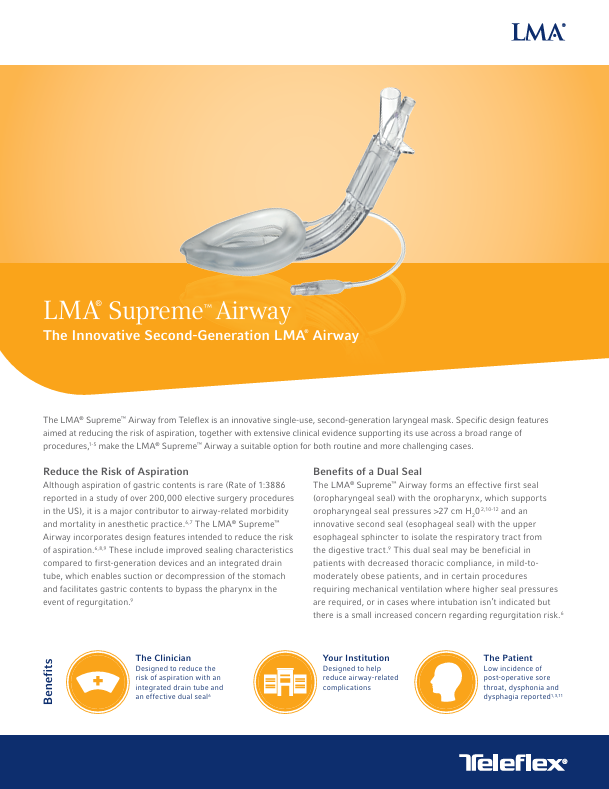

LMA® Supreme™ Airway

LMA Supreme Airway

The Innovative Second-Generation LMA® Airway

The LMA® Supreme™ Airway from Teleflex is designed to increase efficacy and safety versus first-generation devices.13,14 Specific design features aimed at reducing the risk of aspiration, together with extensive clinical evidence supporting its use across a broad range of procedures,15-19 make the LMA® Supreme™ Airway a suitable option for both routine and more challenging cases.

Item
Number		 MASK SIZE PATIENT WEIGHT (KG) MAXIMUM INTRACUFF
Pressure (cm H2O)* 		LARGEST SIZE
OG TUBE (MM/FR)
ALBF010SU 1 Up to 5 60 6
ALBF015SU 1.5 5 – 10 60 6
ALBF020SU 2 10 – 20 60 10
ALBF025SU 2.5 20 – 30 60 10
ALBF030SU 3 30 – 50 60 14
ALBF040SU 4 50 – 70 60 14
ALBF050SU 5 70 – 100 60 14

OG=Orogastric Tube

* It is recommended that the cuff be inflated to a maximum of 60 cm H20 intracuff pressure.

References:

  1. Eschertzhuber S, Brimacombe J,† Hohlrieder M, Keller C.† Anaesthesia. 2009;64(1):79-83.
  2. Jagannathan N, Sohn LE, Sawardekar A, Gordon J, Langen KE, Anderson K. Anaesthesia. 2012;67(6):632-639.‡
  3. Anand LK, Goel N, Singh M, Kapoor D. Acta  anaesthesiologica Taiwanica . 2016;54(2):44-50.
  4. Maitra S, Khanna P, Baidya DK. Eur J Anaesthesiol. 2014;31(5):266-273.
  5. Wong JG, Heaney M, Chambers NA, Erb TO, von Ungern-Sternberg BS. Paediatr Anaesth. 2009;19(5):464-469.
  6. Bell SF, Morris NG, Rao A, Wilkes AR, Goodwin N. 2012;67(12):1337-1342.
  7. Martin DP, Bhalla T, Thung A, Tobias JD. Int J Pediatr Otorhinolaryngol. 2013;77(1):76-78.‡
  8. Van Zundert T, Brimacombe J.† Anaesthesiol Intensive Ther. 2012;44(2):63-70.‡
  9. Burgard G, Mollhoff T, Prien T. J Clin Anesth. 1996;8(3):198-201.
  10. Chantzara G, Stroumpoulis K, Alexandrou N, Kokkinos L, Iacovidou N, Xanthos T. Minerva Anestesiol. 2014;80(5):547-555.

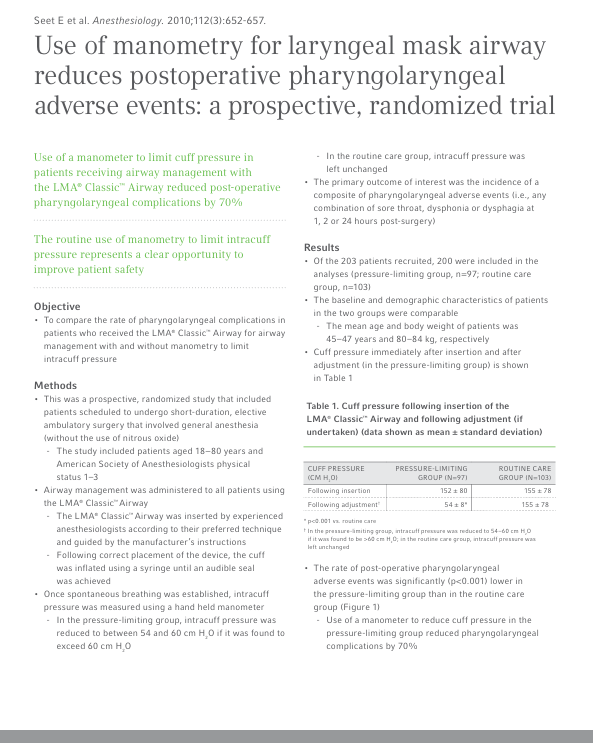

  11. Seet E, Yousaf F, Gupta S, Subramanyam R, Wong DT, Chung F. Anesthesiology. 2010;112(3):652-657.‡
  12. Vasanth Karthik R, Ranganathan P, Kulkarni AP, Sharma KS. J Anesth. 2014;28(5):662-667.
  13. Cook TM,† Woodall N, Frerk C, Fourth National Audit P. Br J Anaesth. 2011;106(5):617-631.
  14. Cook T,† Howes B. Contin Educ Anaesth Crit Care Pain. 2011;11(2):56-61.
  15. Abdi W, Amathieu R, Adhoum A, et al. Acta Anaesthesiol Scand. 2010;54(2):141-146.
  16. Yao WY, Li SY, Sng BL, Lim Y, Sia AT. Can J Anaesth. 2012;59(7):648-654.
  17. Belena JM, Gracia JL, Ayala JL, et al. J Clinl Anesth. 2011;23(6):456-460.
  18. Sharma V, Verghese C,† McKenna PJ. Br J Anaesth. 2010;105(2):228-232.
  19. Roiss M, Semrau M, Blanc I, Graefen M, Goetz AE, Reuter DA. Abstract and poster presentation at the Anesthesiology 2011 Annual Meeting (abstr. A1059)2011.‡

† Formerly a paid consultant of Teleflex or its affiliates.

‡ Research sponsored in part by Teleflex Incorporated.

Rx Only. Teleflex, Cuff Pilot, Evolution Curve, Gastro, LMA, LMA Protector, LMA Supreme, LMA Unique, and Unique EVO are trademarks or registered trademarks of Teleflex Incorporated or its affiliates. Information in this material is not a substitute for the product Instructions for Use. Not all products may be available in all countries. Please contact your local representative. MC-005133
