Standard Endotracheal Tubes

The simple solution for your daily intubations

High-Volume, Low-Pressure Endotracheal Tubes

Designed for Short or Long-Term Intubations

The high-volume, large diameter cuff in both cylindrical and tapered styles is designed to provide a tracheal wall seal at low pressures.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Sheridan/HVT® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length Qty
5-103105.0 mm6.8 mm16.0 mm241 mm10
5-103115.5 mm7.5 mm19.0 mm271 mm10
5-103126.0 mm8.2 mm22.0 mm281 mm10
5-103136.5 mm8.9 mm24.0 mm291 mm10
5-103147.0 mm9.6 mm26.0 mm313 mm10
5-103157.5 mm10.2 mm27.0 mm324 mm10
5-103168.0 mm10.9 mm28.0 mm330 mm10
5-103178.5 mm11.5 mm28.0 mm330 mm10
5-103189.0 mm12.2 mm29.0 mm330 mm10
5-1032010.0 mm13.5 mm29.0 mm321 mm10

Rüsch® Safety Clear® Plus Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Murphy Eye
1120820505.0 mm6.7 mm20 mm250 mm10
1120820555.5 mm7.3 mm20 mm280 mm10
1120820606.0 mm8.0 mm24 mm290 mm10
1120820656.5 mm8.7 mm24 mm300 mm10
1120820707.0 mm9.3 mm28 mm320 mm10
1120820757.5 mm10.0 mm28 mm330 mm10
1120820808.0 mm10.7 mm30 mm340 mm10
1120820858.5 mm11.3 mm30 mm345 mm10
1120820909.0 mm12.0 mm34 mm350 mm10
1120820959.5 mm12.7 mm34 mm350 mm10
11208210010.0 mm13.3 mm34 mm350 mm10
Magill
1120800505.0 mm6.7 mm20 mm250 mm10
1120800555.5 mm7.3 mm20 mm280 mm10
1120800606.0 mm8.0 mm24 mm290 mm10
1120800656.5 mm8.7 mm24 mm300 mm10
1120800707.0 mm9.3 mm28 mm320 mm10
1120800757.5 mm10.0 mm28 mm330 mm10
1120800808.0 mm10.7 mm30 mm340 mm10
1120800858.5 mm11.3 mm30 mm345 mm10
1120800909.0 mm12.0 mm34 mm350 mm10
1120800959.5 mm12.7 mm34 mm350 mm10
11208010010.0 mm13.3 mm34 mm350 mm10

* Length without connector

Low-Profile Endotracheal Tubes

Designed for Short-Term Intubations

By facilitating intubation and increasing visualization, the Rüsch® and Sheridan® low-volume, low-pressure cuffs are designed for short-term intubations.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Rüsch® Super Safety Clear Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
112480025 2.5 mm 4.0 mm 8.0 mm 160 mm 10
112480030 3.0 mm 5.0 mm 8.0 mm 170 mm 10
112480035 3.5 mm 5.3 mm 8.0 mm 190 mm 10
112480040 4.0 mm 6.0 mm 10.5 mm 220 mm 10
112480045 4.5 mm 6.3 mm 10.5 mm 230 mm 10

* Length without connector


Sheridan/CF® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
CF Magill Type
5-102063.0 mm4.2 mm7.3 mm160 mm10
5-102084.0 mm5.5 mm8.9 mm 200 mm 10
5-102105.0 mm6.8 mm13.0 mm 241 mm 10
5-102126.0 mm8.2 mm16.0 mm 281 mm 10
5-102136.5 mm8.9 mm19.0 mm 291 mm 10
5-102147.0 mm9.6 mm19.0 mm 313 mm 10
5-102157.5 mm10.2 mm24.0 mm324 mm 10
5-102168.0 mm10.9 mm24.0 mm 330 mm 10
5-102178.5 mm11.5 mm 27.0 mm 330 mm 10
5-102189.0 mm12.2 mm 27.0 mm 330 mm 10
5-102199.5 mm12.9 mm 26.0 mm 321 mm 10
5-1022010.0 mm13.5 mm 27.0 mm 321 mm 10
CF Murphy Eye
5-101063.0 mm4.2 mm7.3 mm160 mm10
5-101073.5 mm4.9 mm8.9 mm181 mm10
5-101084.0 mm5.5 mm8.9 mm200 mm10
5-101094.5 mm6.2 mm11.0 mm221 mm10
5-101105.0 mm6.8 mm13.0 mm241 mm10
5-101115.5 mm7.5 mm16.0 mm271 mm10
5-101126.0 mm8.2 mm16.0 mm281 mm10
5-101136.5 mm8.9 mm19.0 mm291 mm10
5-101147.0 mm9.6 mm19.0 mm313 mm10
5-101157.5 mm10.2 mm24.0 mm324 mm10
5-101168.0 mm10.9 mm24.0 mm330 mm10
5-101178.5 mm11.5 mm27.0 mm330 mm10
5-101189.0 mm12.2 mm27.0 mm330 mm10
5-101199.5 mm12.9 mm26.0 mm321 mm10
5-1012010.0 mm13.5 mm27.0 mm321 mm10

* Length without connector

Uncuffed Endotracheal Tubes

Designed for smaller airways.

Special depth lines at the distal tip indicate the depth of intubation. The smooth, molded, gently cupped tip eases intubation, while the tube is designed to soften at body temperature to conform to the airway anatomy.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Rüsch® Safety Clear® Endotracheal Tube

Ref. Order Size / I.D. O.D. length* length black tip Qty
100382025 2.5 mm 3.3 mm 160 mm 20 mm 10
100382030 3.0 mm 4.0 mm 170 mm 20 mm 10
100382035 3.5 mm 4.7 mm 190 mm 20 mm 10
100382040 4.0 mm 5.3 mm 210 mm 30 mm 10
100382045 4.5 mm 6.0 mm 230 mm 30 mm 10
100382050 5.0 mm 6.7 mm 250 mm 40 mm 10
100382055 5.5 mm 7.3 mm 280 mm 40 mm 10
100382060 6.0 mm 8.0 mm 290 mm 40 mm 10
100382065 6.5 mm 8.7 mm 300 mm 40 mm 10

* Length without connector


Sheridan® Uncuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. length Qty
5-10404 2.0 mm 2.9 mm 141 mm 10
5-10405 2.5 mm 3.6 mm 141 mm 10
5-10406 3.0 mm 4.2 mm 160 mm 10
5-10407 3.5 mm 4.9 mm 181 mm 10
5-10408 4.0 mm 5.5 mm 200 mm 10
5-10409 4.5 mm 6.2 mm 221 mm 10
5-10410 5.0 mm 6.8 mm 241 mm 10
5-10411 5.5 mm 7.5 mm 271 mm 10
5-10412 6.0 mm 8.2 mm 281 mm 10
5-10413 6.5 mm 8.9 mm 291 mm 10
5-10414 7.0 mm 9.6 mm 313 mm 10

Pre-Styletted Endotracheal Tubes

Designed to ease workflow and minimize waste

Rüsch® and Sheridan® pre-styletted tubes use our standard tubes and stylets. Packaged together, preassembled and ready to use, saving time and space as compared to standalone stylets and endotracheal tubes. Available in both cuffed and uncuffed versions.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Rüsch® Flexi-Set Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Cuffed Version
504550 5.0 mm 6.7 mm 13.0 mm 250 mm 10
504555 5.5 mm 7.3 mm 16.5 mm 280 mm 10
504560 6.0 mm 8.0 mm 18.5 mm 290 mm 10
504565 6.5 mm 8.7 mm 20.5 mm 300 mm 10
504570 7.0 mm 9.3 mm 24.0 mm 320 mm 10
504575 7.5 mm 10.0 mm 26.0 mm 330 mm 10
504580 8.0 mm 10.7 mm 26.0 mm 340 mm 10
504585 8.5 mm 11.3 mm 28.0 mm 345 mm 10
504590 9.0 mm 12.0 mm 28.0 mm 350 mm 10
Uncuffed Version
506525 2.5 mm 3.3 mm   160 mm 10
506530 3.0 mm 4.0 mm   170 mm 10
506535 3.5 mm 4.7 mm   190 mm 10
506540 4.0 mm 5.3 mm   210 mm 10
506545 4.5 mm 6.0 mm   230 mm 10
506550 5.0 mm 6.7 mm   250 mm 10

* Length without connector

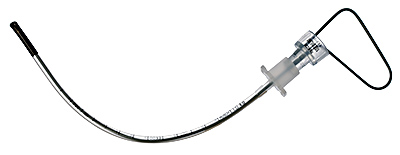

Rüsch® Slick-Set® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Cuffed Version
170050 5.0 mm 6.7 mm 20 mm 250 mm 10
170055 5.5 mm 7.3 mm 20 mm 280 mm 10
170060 6.0 mm 8.0 mm 24 mm 290 mm 10
170065 6.5 mm 8.7 mm 24 mm 300 mm 10
170070 7.0 mm 9.3 mm 28 mm 320 mm 10
170075 7.5 mm 10.0 mm 28 mm 330 mm 10
170080 8.0 mm 10.7 mm 30 mm 340 mm 10
170085 8.5 mm 11.3 mm 30 mm 345 mm 10
170090 9.0 mm 12.0 mm 34 mm 350 mm 10
170095 9.5 mm 12.7 mm 34 mm 350 mm 10
1700100 10.0 mm 13.3 mm 34 mm 350 mm 10
Uncuffed Version
170120 2.0 mm 3.0 mm   150 mm 10
170125 2.5 mm 3.3 mm   160 mm 10
170130 3.0 mm 4.0 mm   170 mm 10
170135 3.5 mm 4.7 mm   190 mm 10
170140 4.0 mm 5.3 mm   210 mm 10
170145 4.5 mm 6.0 mm   230 mm 10
170150 5.0 mm 6.7 mm   250 mm 10
170155 5.5 mm 7.3 mm   280 mm 10

* Length without connector


Sheridan® EZ-Endo® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Cuffed Version
5-22510 5.0 mm 6.8 mm 16 mm 241 mm 10
5-22511 5.5 mm 7.5 mm 19 mm 271 mm 10
5-22512 6.0 mm 8.2 mm 22 mm 281 mm 10
5-22513 6.5 mm 8.9 mm 24 mm 291 mm 10
5-22514 7.0 mm 9.6 mm 26 mm 313 mm 10
5-22515 7.5 mm 10.2 mm 27 mm 324 mm 10
5-22516 8.0 mm 10.9 mm 28 mm 330 mm 10
5-22517 8.5 mm 11.5 mm 28 mm 330 mm 10
5-22518 9.0 mm 12.2 mm 29 mm 330 mm 10

* Length without connector
