Rüsch® EZ-Blocker® Endobronchial Blocker

Rüsch EZ-Blocker Endobronchial Blocker

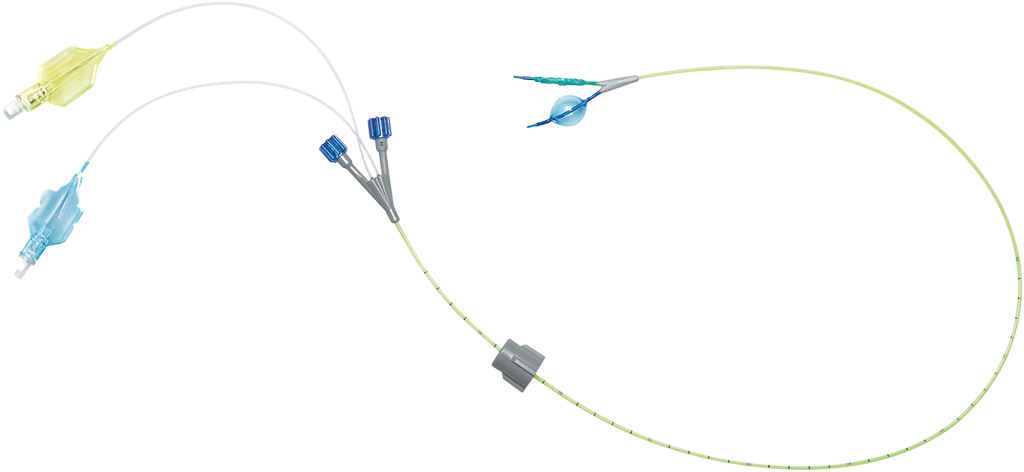

The EZ-Blocker® Endobronchial Blocker is the next generation of one-lung ventilation products designed to provide lung isolation. EZ-Blocker® features a unique bifurcated distal tip, allowing for intuitive placement of the cuffs in the right or left bronchus.

Clinical Literature: Applications

Clinical Literature: Efficacy

REF.

SET COMPONENTS

LENGTH

SIZE

QTY

MG-02770-002

  • 1 EZ-Blocker® Endobronchial Blocker
  • 1 EZ-Multiport Adaptor with scope lid
  • 1 Oxygen adaptor
  • 2 Dust caps

75 cm

7 Fr.

5

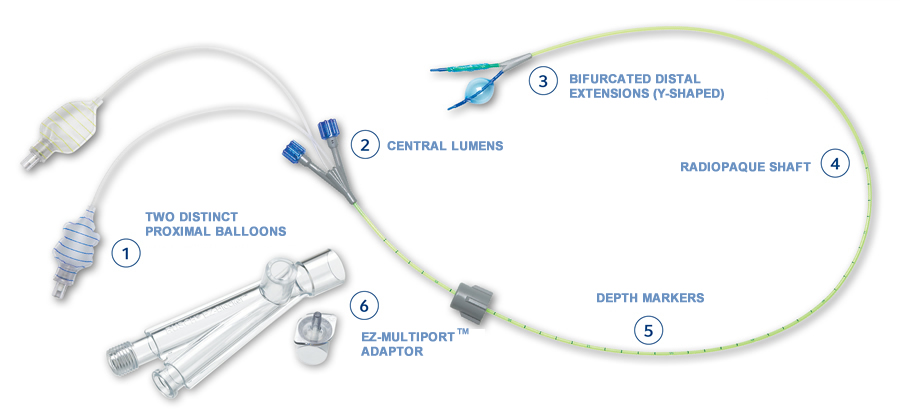

EZ-BLOCKER® ENDOBRONCHIAL BLOCKER PRODUCT FEATURES


  • Color of the markings on the pilot balloons match color of the distal lumens
  • Provides indication of blocker orientation after placement
balloons
  • Allow oxygen to be administered (CPAP) to the isolated lung during procedure
  • Allow CO2 flow check to ensure cuff is providing a full seal
central-lumens
  • Distal ends are color-coded, allowing easy identification withcorresponding colors on the pilot balloons
  • Low-volume cuffs made of polyurethane, providing optimal seal for surgical procedures
  • The unique bifurcated distal end of the EZ-Blocker® Endobronchial Blocker allows for the intuitive placement of the cuffs in the right or left bronchus
extensions

The catheter of the EZ-Blocker® Endobronchial Blocker is constructed of a material visible under X-ray to allow for verification of placement depth.

shaft

The unique bifurcated distal end of the EZ-Blocker® Endobronchial Blocker allows for the intuitive placement of the cuffs in the right or left bronchus

shaft

Facilitates ventilation, placement of the EZ-Blocker® Endobronchial Blocker, and the introduction of fiber-optic or video bronchoscopes and suction catheters

adaptor

  • Routine intubation technique is used for endotracheal tube placement
  • The EZ-Blocker® Endobronchial Blocker is inserted through the EZ-Multiport Adaptor into the endotracheal tube
  • Not necessary to re-intubate if post-operative ventilation is needed
Rx Only. Refer to package insert for complete warnings, indications, contraindications, precautions, potential complications and instructions for use. The products in this document may not be available in all countries. Please contact your local representative.
Teleflex, EZ-Blocker and Rusch are trademarks or registered trademarks of Teleflex Incorporated or its affiliates. MC-007295
