Pantera™ Lux™ DCB

Clinically proven. Best in class crossability.1

Pantera™ Lux™ Coronary Drug-Coated Balloon (DCB) is indicated for balloon dilation for in-stent restenosis, de novo lesions, acute or impending vascular occlusion and treatment of small vessel disease.a

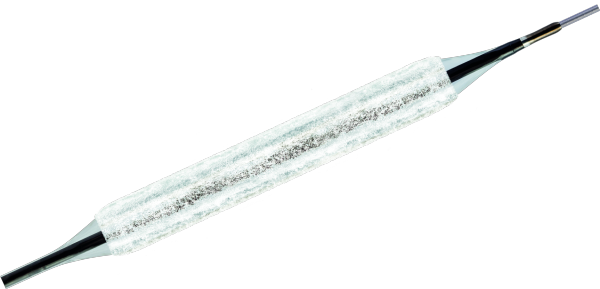

Pantera Lux product image

Product Highlights

People icon

Clinically proven solution

For in-stent-restenosis and further indications2

Coating icon

Lux™ coating technology

For rapid drug absorption3

Arrow icon

Excellent deliverability

Lowest crossing profile for better push and easier cross1

People icon

Clinically proven solution

Clinical outcomes from multiple studies including randomized controlled trials like BIOLUX RCT, ISAR-DESIRE 4 and PEBSI show high efficacy and safety for both in-stent restenosis and de novo lesions.4-9

More than 4,500 patients treated in clinical studies 10

Pantera™ Lux™ DCB has proven efficacy and safety in multiple clinical trials investigating coronary drug-coated balloons for various implant-free treatment options.5-8; 11-15

Stent restenosis

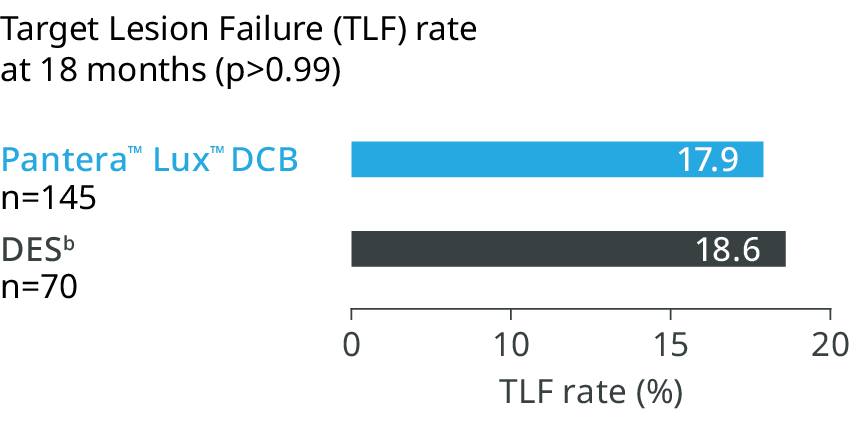

Target Lesion Failure (TLF) rate
at 18 months (p>0.99)

TLF Rate

BIOLUX RCT (n=229) 8

DCB is confirmed as a viable treatment option for ISR with the advantage of avoiding an additional stent layer.8-9

REVELATION (n=120) 13

The treatment with Pantera™ Lux™ DCB may represent a valuable alternative strategy in selected STEMId patients undergoing primary PCI.13

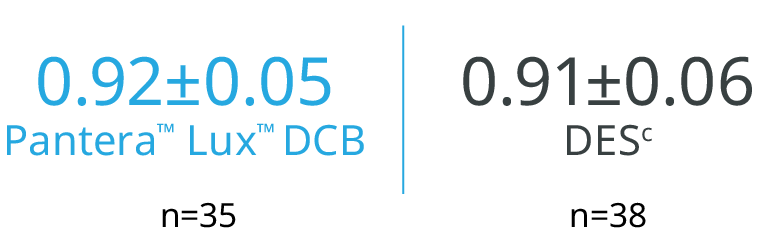

Mean Fractional Flow Reserve (FFR) rate at 9 months (p=0.27)

TLF Rate Revealation
Push graph placeholder

Lux™ coating technology for rapid drug absorption3

The Lux™ coating technology blends paclitaxel with BTHC, a rapidly metabolized, safe and biocompatible excipient, thus improving bioavailability at the target site.2-3

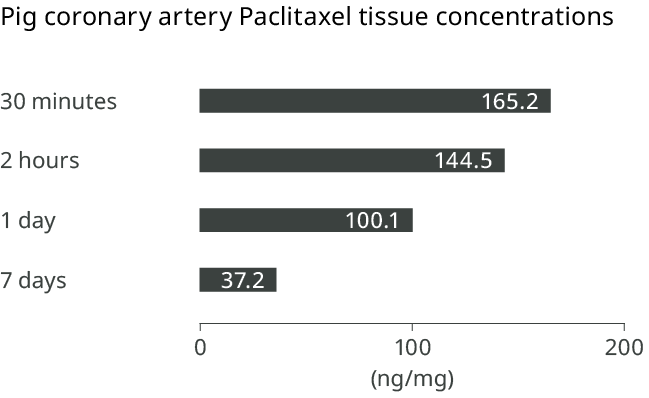

Prolonged tissue retention at the target site2-3

Following one application of the Pantera™ Lux™ DCB, paclitaxel can be readily detected in the treated region beyond 7 days in animal tissue.2-3

Pantera Lux Coating Technology
Push graph placeholder

Excellent deliverability1

Pantera™ Lux™ DCB, with its lowest crossing profile, provides better pushability and easier crossability.1

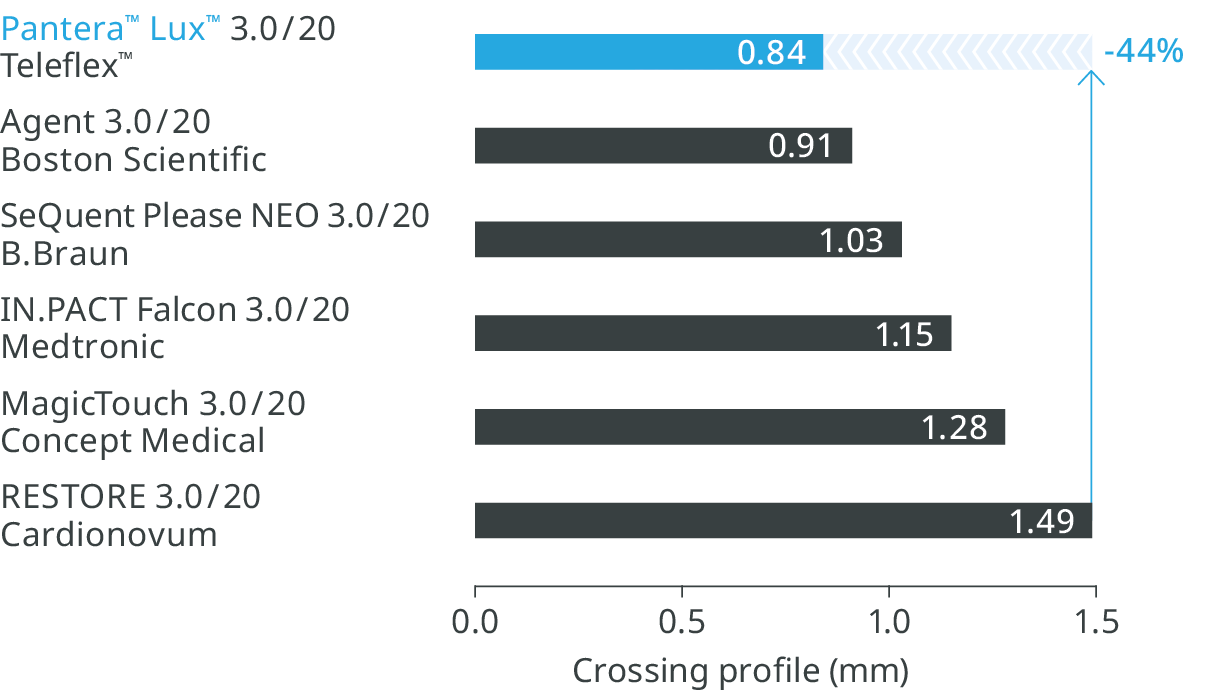

Lowest crossing profile 1

Pantera™ Lux™ DCB has a 44% smaller crossing profile vs. RESTORE™1.

Pantera Lux Crossing Profile

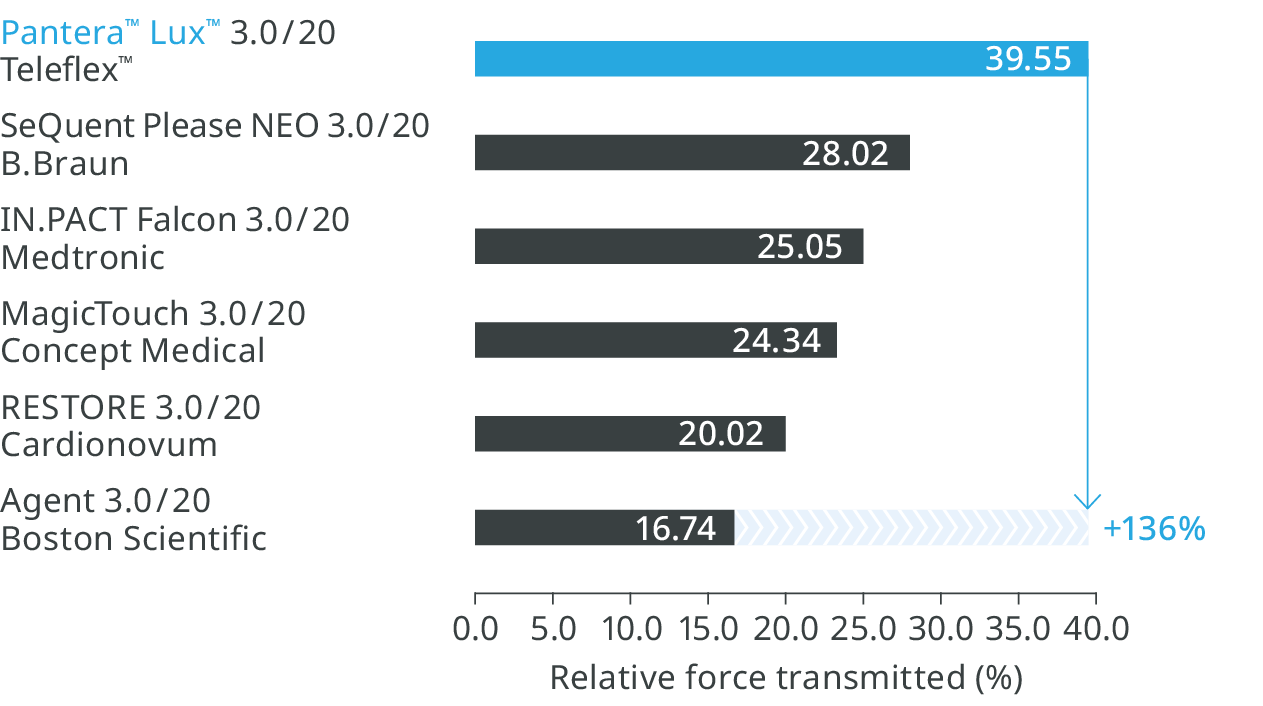

Pantera Lux Better Pushability

Better pushability 1

136% more force transmitted from hub to distal tip vs. Agent™1.

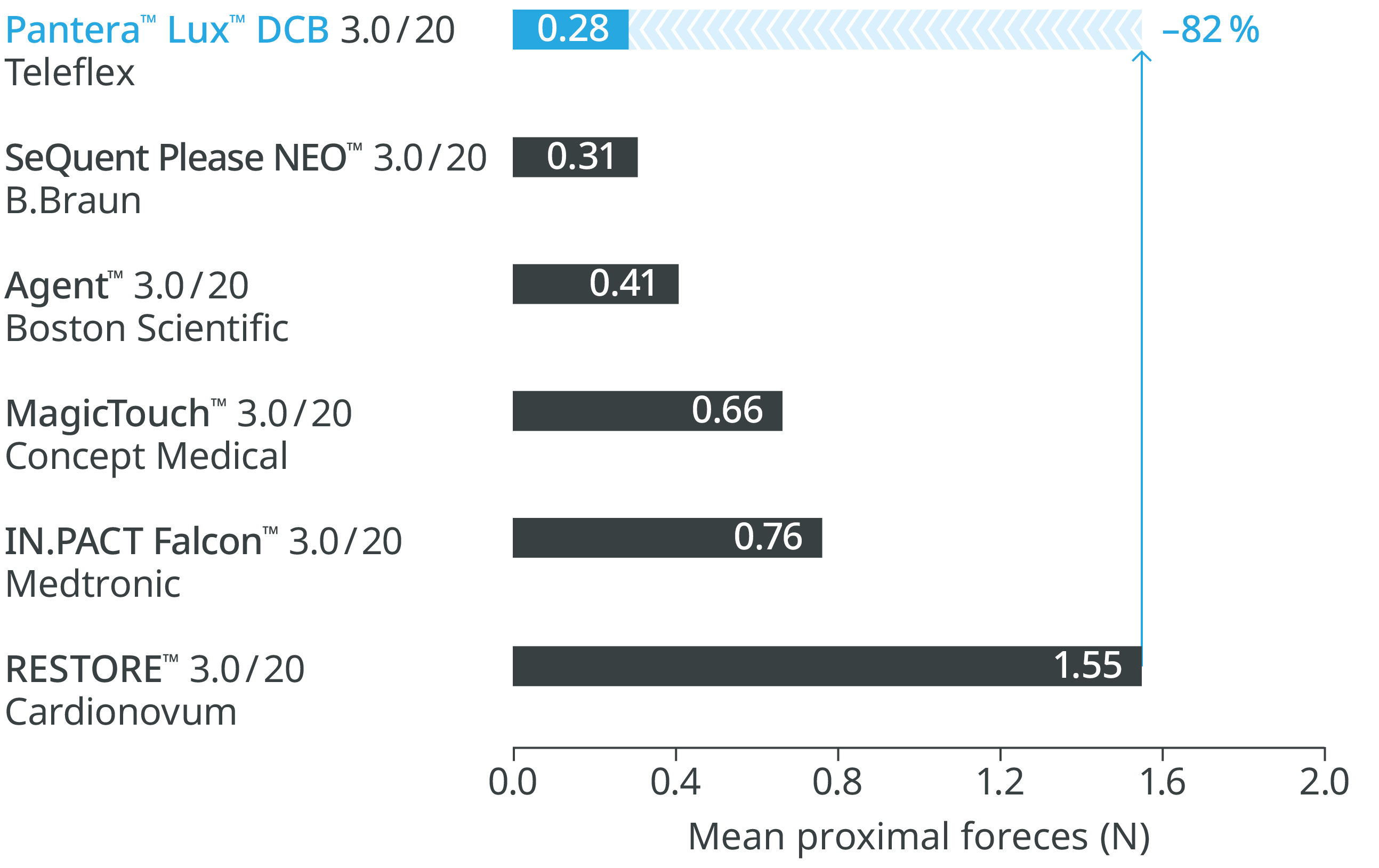

Best in class crossability 1

82% less force needed to cross lesions vs. RESTORE™1.

Pantera Lux Crossability

Clinical Highlights

BIOLUX RCT8

DCB is confirmed as a viable treatment option for ISR with the advantage of avoiding an additional stent layer

Prospective, multi-center, randomized, controlled clinical trial

See More

REVELATION13

Excellent and comparable clinical outcome between the DCB and DES groups

24-month follow-up results from the Revelation trial comparing Pantera™ Lux™ DCB vs. 2nd generation DES in patients with Acute Myocardial Infarction

See More

Product Overview


Drug-coated balloon catheter
Catheter type Fast-exchange PTCA balloon catheter
Recommended guide catheter 5F (min. I.D. 0.056”)
Lesion entry profile 0.017”
Guide wire diameter 0.014”
Usable catheter length 140 cm
Balloon folding 3-fold
Balloon markers Two embedded platinum-iridium markers
Brachial shaft marker 92 cm from tip
Femoral shaft marker 102 cm from tip
Proximal shaft diameter 2.0F
Distal shaft diameter 2.5F (ø 2.0 - 3.5 mm), 2.6F (ø 4.0 mm)
Nominal Pressure (NP) 7 atm
Rated Burst Pressure (RBP) 13 atm (ø 2.0 - 3.5 mm); 12 atm (ø 4.0 mm)

Coating
Drug Paclitaxel
Drug dose 3.0 μg/mm2
Coating matrix Lux™ coating comprising Paclitaxel and Butyryl-tri-hexyl citrate (BTHC)
Coated area Cylindrical balloon section and surface exceeding the proximal and distal markers

Balloon diameter x length (mm)
ø 2.0 x 10-30 ø 2.5 x 10-30 ø 3.0 x 10-30 ø 3.5 x 10-30 ø 4.0 x 10-30
Nominal Pressure

(NP)		 atm* 7 7 7 7 7
ø (mm) 2.00 2.50 3.00 3.50 4.00
Rated Burst Pressure

(RBP)		 atm* 13 13 13 13 12
ø (mm) 2.26 2.82 3.48 4.11 4.59
*1 atm= 1.013 bar

Balloon Catheter length 140 cm
ø (mm) Balloon length (mm)
10 15 20 25 30
2.00 365110 365111 365112 365113 365114
2.50 365120 365121 365122 365123 365124
3.00 365125 365126 365127 365128 365129
3.50 365130 365131 365132 365133 365134
4.00 365135 365136 365137 365138 365139

IFU Link

Refer to this IFU link for a copy of the Instructions for Use and for a complete listing of the indications, contraindications, warnings and precautions.
