Ligation Systems

Weck^™ Hem-o-lok^™ Polymer Locking Ligation System

Security you can feel from the #1 selling locking polymer clip

Why have surgeons trusted the Hem-o-lok^™ System for more than one million patients? As the #1 selling locking polymer clip, the Hem-o-lok^™ System offers quality, reliability, and performance in clip security.

Designed for confidence

Featuring a first-of-its-kind locking mechanism and distinct tactile feedback, the Hem-o-lok^™ System gives surgeons the confidence of knowing they’ve locked securely on the patient vessel.

A history with robotic laparoscopy

Since 2007, we’ve collaborated with Intuitive Surgical to provide the Hem-o-lok^™ System for use with the da Vinci^™ Surgical System.

Proven performance

Based on an ex-vivo study*, Weck^™ Hem-o-lok^™ Polymer Clips provide unparalleled security compared to Ethicon LIGAMAX^™ 5, Ethicon LIGACLIP^™ ERCA 10 mm, and Covidien Endo Clip^™ III in three common clip failure modes. Hem-o-lok^™ Medium/Large clips have:

At least 5 times greater clip retention in lateral pull-off force
At least 1.8 times greater leak resistance in leak pressure testing
At least 1.3 times greater clip retention in axial pull-off force

Versatility to meet your needs

Hem-o-lok^™ Clips come in a range of sizes indicated to ligate structures from 2 mm to 16 mm.

The original polymer locking clip

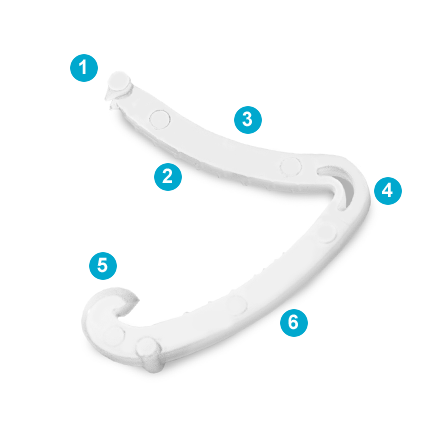

Cutting-edge design

Bosses are designed to retain clip in applier jaws.
Integrated teeth interface with the vessel and are designed to prevent slippage.
Bow-shape design allows removal with appropriate instrument.
Hinge allows flexibility in clip placement prior to clip locking.
Locking mechanism provides tactile feedback and secure closure.
Nonabsorbable polymer is inert, nonconductive, and radiolucent; it does not interfere with CT, MRI, or X-ray diagnostics.

Because the Hem-o-lok^™ System is a cold ligation system, there's no chance of thermal spread to vital structures – a common concern of many surgeons when using energy-based ligation solutions.

The Hem-o-lok^™ System is available in four sizes: Medium, Medium-Large, Large, and Extra-Large. Ordering information in catalog

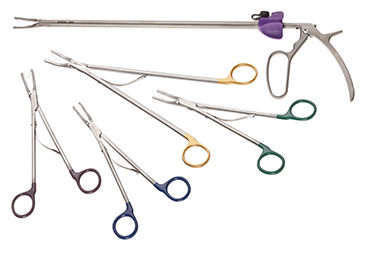

Manual Load Appliers

Open Appliers

Open appliers designed for Medium, Medium-Large, Large, and Extra-Large clips
Available in 8” and 11” lengths
Choice of curved or right-angle jaws
Opens at box-lock for easy, thorough cleaning

Endoscopic Appliers

Endoscopic appliers designed for Medium-Large, Large, and Extra-Large clips
Medium-Large appliers available on a 5 mm platform, enabling ligation of 10 mm vessels through a 5 mm port
Available in 32 cm or extended-length 45 cm
One-piece and take-apart designs

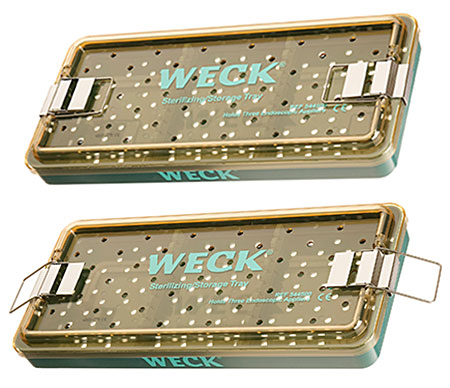

Manual Applier Storage Tray

The Weck^™ Manual Applier Sterilization/Storage tray can fit up to 3 endoscopic 32 cm appliers
Ordering number: 544500

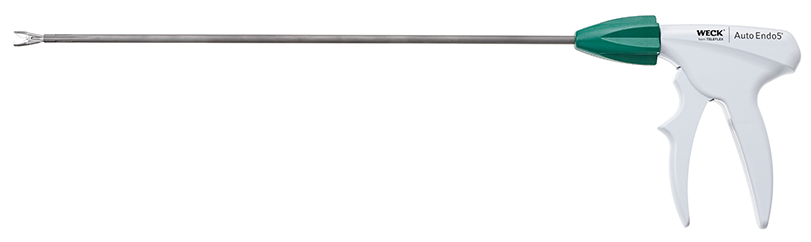

Weck^™ Auto Endo5^™ Automatic Hem-o-lok^™ Clip Applier

Secure delivery of 15 Medium/Large Hem-o-lok^™ Clips – the only clips indicated for ligating up to a 10 mm vessel or tissue structure through a 5 mm port
35 cm shaft, the longest available among automatic endoscopic clip appliers, for better reach and procedural flexibility
Three points of contact between the clip and the applier for enhanced stability

Automatic Polymer Ligation - Ordering Information

Item No.	Description	Clip Size	Shaft Length	No. of Clips	Apliers/Box
AE05ML	Weck^™ Auto Endo5^™ Automatic Ligating Clip Applier	ML	35 cm	15	3

Weck^™ Hem-o-lok^™ Polymer Ligating Clips

Size	Description	Item No.	Qty/Cartridge	Cartridges/Box
M	Medium Polymer Clip	544220	6	14
ML	Medium-Large Polymer Clips	544230	6	14
L	Large Polymer Clips	544240	6	14
XL	Extra-Large Polymer Clips	544250	6	14

How to order

Open Surgical Appliers – All Weck^™ Ring-Handled Reusable Open-Surgical Appliers are covered by a warranty. Teleflex Medical will repair, or replace, free of charge, these appliers as long as the appliers are used as intended for application of Weck^™ Hem-o-lok^™ Clips and have not been repaired by unauthorized personnel.
Endoscopic Surgical Appliers – Weck^™ Hem-o-lok^™ Manual Load Endoscopic Appliers are covered by a three year warranty on defects in materials and workmanship and a three year repair service on tip alignment and refurbishment as long as the appliers are used as intended for application of Weck^™ Clips and have not been repaired by unauthorized personnel.
Endoscopic Surgical Appliers – Manual load endoscopic appliers are covered by a two year warranty on defects in materials and workmanship and a two year repair service on tip alignment and refurbishment as long as the appliers are used as intended for application of clips and have not been repaired by unauthorized personnel.

*Data on file (2013 internal study), Teleflex Incorporated, Report #D001591. Testing conducted on porcine carotids, sample size = 33, p≤ 0.05. Clinical performance cannot be extrapolated from the data. Testing pressures range beyond physiological pressures.

Rx Only.

Contraindication: Hem-o-lok^™ Ligating Clips are not intended for use as a fallopian contraceptive tubal occlusion device. Hem-o-lok^™ Ligating Clips are contraindicated for use in ligating the renal artery during laparoscopic donor nephrectomies. For complete indications, contraindications, warnings, precautions, and adverse reactions, please reference each referenced product’s full package insert. Not all products may be available in all markets. Contact your local sales rep for availability.
