Airway Management

Supraglottic Airways

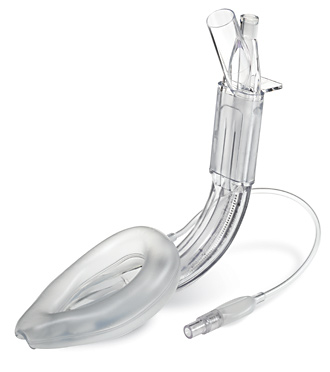

LMA® Supreme Airway

LMA<sup>®</sup> Supreme<sup>™</sup> Airway

When Lives Depend on You, Depend on LMA® Airways.

With precious few seconds available to choose a rescue airway device, the decision is a critical one. The leading single-use, gastric access laryngeal mask airway with a built-in drain tube, the LMA® Supreme Airway is the airway of choice.

Laryngeal Masks Video

Cadaver Lab Registration Site

Item
Number
Mask Size Patient Weight MAXIMUM CUFF VOLUME (AIR)* MAXIMUM SIZE OG TUBE QTY/CASE
175010 Size 1 up to 5 kg up to 5 mL 6 French 10
175015 Size 1½ 5 –10 kg up to 8 mL 6 French 10
175020 Size 2 10 – 20 kg up to 12 mL 10 French 10
175025 Size 2½ 20 – 30 kg up to 20 mL 10 French 10
175030 Size 3 30 – 50 kg up to 30 mL 14 French 10
175040 Size 4 50 – 70 kg up to 45 mL 14 French 10
175050 Size 5 70 – 100 kg up to 45 mL 14 French 10
OG= orogastric tube
* These are maximum volumes that should never be exceeded. It is recommended the cuff be inflated to 60 cm H20 intracuff pressure.

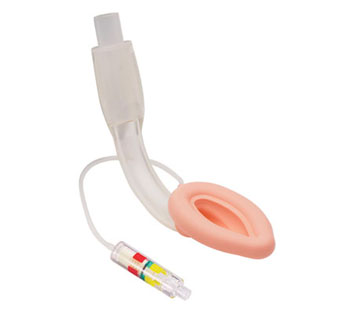

LMA® Unique EVO Airway

LMA<sup>®</sup> Unique EVO<sup>™</sup> Airway

The LMA® Unique EVO Airway from Teleflex is a versatile device designed with the emergency airway in mind. Its pre-curved design and silicone cuff facilitate rapid insertion and optimal seal pressures, and the integrated Cuff Pilot Technology provides constant feedback on cuff inflation levels.

Cadaver Lab Registration Site

Item Number DESCRIPTION MASK
SIZE
Patient Weight MAX INTRACUFF
PRESSURE
MAX ENDOTRACHEAL
TUBE ID
QTY/CASE
1D5030 Standard Airway 3 30–50 kg 60 cm H20 7.0 mm 10
1D5040 Standard Airway 4 50–70 kg 60 cm H20 7.5 mm 10
1D5050 Standard Airway 5 70–100 kg 60 cm H20 8.0 mm 10
1D2030 With Cuff Pilot Technology 3 30–50 kg 60 cm H20 7.0 mm 10
1D2040 With Cuff Pilot Technology 4 50–70 kg 60 cm H20 7.5 mm 10
1D2050 With Cuff Pilot Technology 5 70–100 kg 60 cm H20 8.0 mm 10
It is recommended the cuff to be inflated not exceeding 60 cm H2O intracuff pressure.

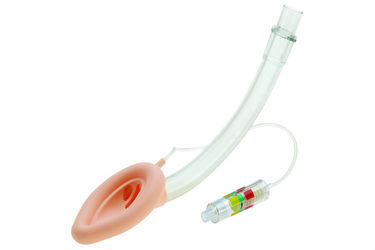

LMA® Unique (Silicone Cuff) Airway

LMA<sup>®</sup> Unique<sup>™</sup> (Silicone Cuff) Airway

The LMA® Unique (Silicone Cuff) Airway from Teleflex combines all of the features of our LMA® Unique Single-use Airway with the benefits of a silicone cuff, including higher seal pressures and conformity to the patient’s anatomy. Its versatility is welcomed in an extensive range of applications, including on emergency vehicles as a resuscitation device when intubation is not possible.

Cadaver Lab Registration Site

Item Number DESCRIPTION MASK
SIZE
Patient Weight MAX CUFF
VOLUME (AIR)*
MAX INTRACUFF
PRESSURE
QTY/CASE
105300-000010 Standard Airway 1 up to 5 kg up to 4 mL 60 cm H20 10
105300-000015 Standard Airway 1.5 5–10 kg up to 7 mL 60 cm H20 10
105300-000020 Standard Airway 2 10–20 kg up to 10 mL 60 cm H20 10
105300-000025 Standard Airway 2.5 20–30 kg up to 14 mL 60 cm H20 10
105300-000030 Standard Airway 3 30–50 kg up to 20 mL 60 cm H20 10
105300-000040 Standard Airway 4 50–70 kg up to 30 mL 60 cm H20 10
105300-000050 Standard Airway 5 70–100 kg up to 40 mL 60 cm H20 10
105300-000060 Standard Airway 6 over 100 kg up to 50 mL 60 cm H20 10
105200-000010 With Cuff Pilot
Technology
1 up to 5 kg up to 4 mL 60 cm H20 10
105200-000015 With Cuff Pilot
Technology
1.5 5–10 kg up to 7 mL 60 cm H20 10
105200-000020 With Cuff Pilot
Technology
2 10–20 kg up to 10 mL 60 cm H20 10
105200-000025 With Cuff Pilot
Technology
2.5 20–30 kg up to 14 mL 60 cm H20 10
105200-000030 With Cuff Pilot
Technology
3 30–50 kg up to 20 mL 60 cm H20 10
105200-000040 With Cuff Pilot
Technology
4 50–70 kg up to 30 mL 60 cm H20 10
105200-000050 With Cuff Pilot
Technology
5 70–100 kg up to 40 mL 60 cm H20 10
105200-000060 With Cuff Pilot
Technology
6 over 100 kg up to 50 mL 60 cm H20 10
*These are maximum volumes that should never be exceeded. It is recommended the cuff to be inflated not exceeding 60 cm H20 intracuff pressure.

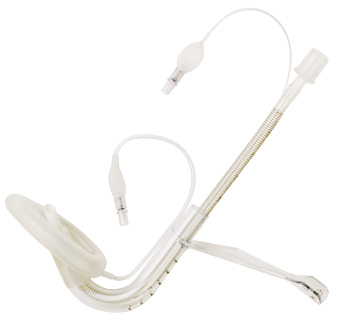

LMA® Fastrach Airway

LMA<sup>®</sup> Fastrach<sup>™</sup> Airway

When Lives Depend on You, Depend on LMA® Airways.

The LMA® Fastrach Airway, the ventilating, intubating LMA® Airway.

Designed for emergency airways and for cardiopulmonary resuscitation, the LMA® Fastrach Airway facilitates continuous ventilation and intubation.

Cadaver Lab Registration Site

ITEM
NUMBER
DESCRIPTION Patient
Weight
MAXIMUM CUFF
VOLUME (AIR)*
QTY/CASE
135100 LMA® Fastrach Single-Use Multipack
(1) Each size 3, 4 and 5 LMA Fastrach® Single-Use Airway Devices;
Syringe and Lubricant
(1) Each size 6.0, 6.5, 7.0, 7.5 and 8.0 mm Single-Use ETTs;
(3) Single-Use Stabilizer Rods
See Below See Below 1
137100 LMA® Fastrach Single-Use Multipack
(1) Each size 3, 4 and 5 LMA Fastrach® Single-Use Airway Devices;
Syringe and Lubricant
(1) Each size 6.0 and 6.5 (3) 7.0 Single-Use ETTs;
(3) Single-Use Stabilizer Rods
See Below See Below 1
135230 LMA® Fastrach Single-Use, Size 3 (5 Pack)
(5) Each size 3 LMA Fastrach® Single-Use Airway Devices; Syringe and Lubricant
(5) 7.0 mm Single-Use ETTs; (5) Single-Use Stabilizer Rods
Children
30–50 kg
up to 20 mL 5
135240 LMA® Fastrach Single-Use Airway Ordering Information Single-Use, Size 4 (5 Pack)
(5) Each size 4 LMA Fastrach® Single-Use Airway Devices; Syringe and Lubricant
(5) 7.5 mm Single-Use ETTs; (5) Single-Use Stabilizer Rods
Adults
50–70 kg
up to 30 mL 5
137240 LMA® Fastrach Single-Use, Size 4 (5 Pack)
(5) Each size 4 LMA Fastrach® Single-Use Airway Devices; Syringe and Lubricant
(5) 7.0 mm Single-Use ETTs; (5) Single-Use Stabilizer Rods
Adults
50–70 kg
up to 30 mL 5
135250 LMA® Fastrach Single-Use Airway Ordering Information Single-Use, Size 5 (5 Pack)
(5) Each size 5 LMA Fastrach® Single-Use Airway Devices; Syringe and Lubricant
(5) 7.5 mm Single-Use ETTs; (5) Single-Use Stabilizer Rods
Adults
70–100 kg
up to 40 mL 5
137250 LMA® Fastrach Single-Use, Size 5 (5 Pack)
(5) Size 5 LMA Fastrach® Single-Use Airway Devices; Syringe and Lubricant
(5) 7.0 mm Single-Use ETTs; (5) Single-Use Stabilizer Rods
Adults
70–100 kg
up to 40 mL 5
ETT= endotracheal tube
*These are maximum volumes that should never be exceeded. It is recommended the cuff be inflated to 60 cm H2O intracuff pressure.

Features

  • Supraglottic, non-invasive airway management device
  • Comprised of three main components; Airway Tube, Mask and Inflation Line
  • Masks are designed to conform to the contours of the hypopharynx with the bowl of the mask facing the laryngeal opening

Patients

Designed to maintain/temporize an airway in:

  • Patients with immediate need of an airway
  • Patients with failed tracheal intubation or for whom tracheal intubation is not an option
  • Patients for whom the benefit of establishing an airway outweighs the risk of regurgitation and/or aspiration
Teleflex, Cuff Pilot, LMA, LMA Fastrach, LMA Supreme, Unique and Unique EVO are trademarks or registered trademarks of Teleflex Incorporated or its affiliates, in the U.S. and/or other countries. MC-000048 Rev 5.1
