Pronto Extraction Catheters image

Pronto Extraction Catheters

Pronto Extraction Catheters are designed for removal of thrombus. The uniformly large extraction lumen offers thrombus extraction with enhanced kink resistance. Each version of the Pronto Catheter features the patented Silva distal tip, designed to center the catheter tip during insertion and extraction.

Pronto V4 Extraction Catheter

Powerful aspiration with kink resistance

The Pronto V4 Extraction Catheter features an uniformly large extraction lumen and patented Silva tip and provides excellent aspiration performance.1 The Pronto V4 Extraction Catheter is available in 5.5, 6, 7 and 8 Fr. sizes, each featuring an embedded longitudinal wire for kink resistance and enhanced pushability.

  • PTFE lined guidewire lumen for smooth movement and rapid exchange catheter delivery over a 0.014” guidewire
  • Sloped extraction lumen opening is designed to aspirate larger thrombi
  • Hydrophilic coating on the distal 18 cm promotes smooth vessel navigation and trackability
  • Uniformly large extraction lumen is designed to maximise thrombus extraction
  • Embedded longitudinal wire enhances deliverability and kink resistance

Pronto V3 Extraction Catheter

Deliverability in design

The Pronto V3 Extraction Catether is specially designed for deliverability during percutaneous thrombus aspiration with a self-centering tip to help prevent vessel wall adhesion. The full-length braided shaft enhances pushability and kink resistance while maintaining flexibility. This combination offers impressive deliverability when and where it’s needed most.

  • PTFE lined guidewire lumen for smooth movement and rapid exchange catheter delivery over a 0.014” guidewire
  • Hydrophilic coating on the distal segment promotes smooth vessel navigation and trackability
  • Uniformly large extraction lumen is designed to maximise thrombus extraction

Pronto LP Extraction Catheter

Low-profile aspiration

The Pronto LP Extraction Catheter combines the extraction power of the Pronto V4 Extraction Catheter in a low, 0.053” crossing profile for use in vessels ≥1.5 mm in diameter.

  • Two versions available for both 5 and 6 Fr. guide catheters
  • PTFE lined guidewire lumen for smooth movement and rapid exchange catheter delivery over a 0.014” guidewire
  • Sloped extraction lumen accommodates larger thrombi
  • Distal hydrophilic coating for lubricious delivery and smooth navigation
  • Preloaded stylet can easily be removed for aspiration through a separate port, and offers pushability and kink resistance during delivery

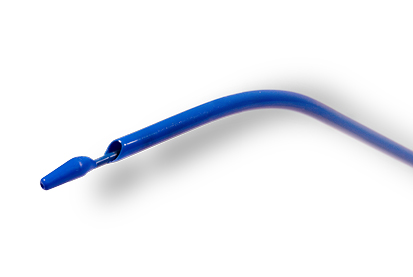

Pronto .035" Extraction Catheter

10 Fr. power in aspiration

A complete system for the rapid removal of thrombus from vessels of the peripheral arterial or deep venous system greater than 4 mm in diameter.

  • Maximized thrombus aspiration with rate control —unobstructed aspiration lumen with an in-line roller clamp to control the rate of aspiration
  • Braid reinforced extrusion ­— resists kinking over entire length of catheter and increases tip control
  • 120˚ angle with 4 cm tip ­— enhances steerability and vessel selection and allows for rotational control of aspiration lumen in large vessels
  • Easy over-the-wire delivery — compatible with standard 0.035” guidewires
  • 10 Fr. sheath compatible

References:

  1. Data on file at Teleflex. Test data may not be indicative of clinical performance.
The Pronto V4, V3 and LP Catheters are indicated for the removal of fresh, soft emboli and thrombi from vessels in the coronary and peripheral system. The Pronto .035" Catheter is indicated for the removal/aspiration of embolic material (thrombus/debris) from vessels of the arterial system, the removal/aspiration of embolic material (thrombus/debris) from vessels of the deep venous system, and to infuse/deliver diagnostic or therapeutic agents. Refer to the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions. Information in this material is not a substitute for the product Instructions for Use. Not all products are available in all regions. Please contact customer service to confirm availability in your region. Teleflex, the Teleflex logo and Pronto are trademarks or registered trademarks of Teleflex Incorporated or its affiliates, in the U.S. and/or other countries. MCI‑2020‑0350
