Arrow Pressure Injectable Midline

A unique color scheme of luer hub and pinch clamps for ease of identification as a midline device1

The Arrow Pressure Injectable Midline is Indicated for:

  • Power injection of contrast media at 300 psi with a maximum flow rate of infusion of 5 mL/sec for each lumen
  • Short-term peripheral venous access for intravenous therapy, blood sampling, infusion and power injection of contrast media
  • Available in 4 Fr 1 Lumen and 5 Fr 2 Lumen
  • Length 20 cm and distally trimmable

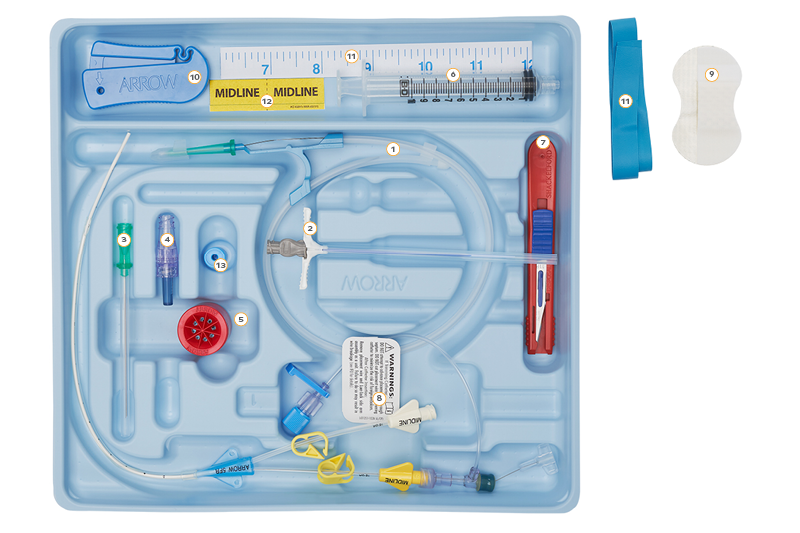

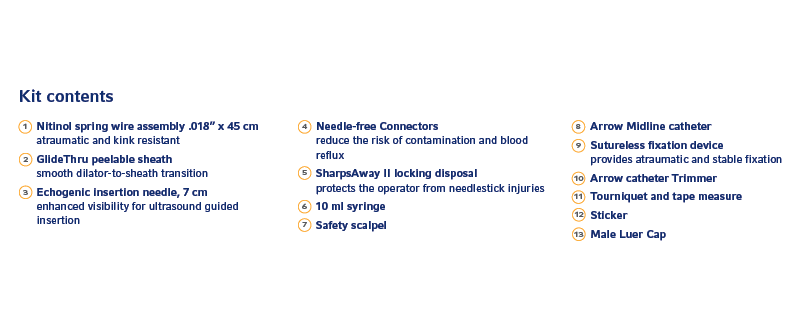

  • Kitting includes sharps safety componentry engineered to enhance clinician/patient safety and facilitate hospital compliance with OSHA and INS Guidelines


The uniqueness of Arrow Midline resides also in unique components for a better experience

Arrow Ergonomic Trimmer
Arrow ergonomic trimmer
Arrow GlideThru Peelable Sheath
Arrow GlidThru peelable sheath
Locking Sharps Cup
Locking Sharps Cup

Order Information


N° of



Flow rate*





4 Fr

18 G

5 ml/sec

20 cm




5 Fr

18 G

5 ml/sec

20 cm


* Tested to pressure injection at 300 psi


  1. Claim Matrix n. D034504
  2. Pettit, J. “Trimming of Peripherally Inserted Central Catheters: The End Result.” The Journal of the Association for Vascular Access 11(4): 209-214.
  3. Gorski, L., Hadaway, L., Hagle, M. E., McGoldrick, M., Orr, M., & Doellman, D. (2021, January/February). Infusion Therapy Standards of Practice. Journal of Infusion Nursing, 44.1S.
  4. United States Department of Labor. (2021). Occupational Safety and Health Standards: Bloodborne Pathogens. .
Grip-Lok is a registered trademark of Zefon International, Inc. MicroCLAVE Neutral Displacement Connectors is an exclusive proprietary product manufactured by ICU Medical.
Teleflex, the Teleflex logo, Arrow, GlideThru and TaperFree are trademarks or registered trademarks of Teleflex Incorporated or its affiliates, in the U.S. and/or other countries.
Information in this document is not a substitute for the product Instructions for Use. The products in this catalogue may not be available in all countries. Please contact your local representative. Subject to technical changes without further notice. © 2022 Teleflex Incorporated. All rights reserved. MCI-101067.
